Tck 50 cnc lathe

  • Numerically controlled lathes suitable for all types of machining

  • Machinery with compact structure and dimensions

  • Self-learning lathes with servo control of XYZ and C axes

  • Controlled by Fanuc / Siemens CNC

  • Machinery suitable for processing medium and small sized pieces

TCK50 cnc lathe

CNC lathe mod TCK 50

DRILLING CAPACITY

  • Swing over bench  Ø 400 mm

  • Swing on the carriage   Ø 230 mm

  • Turning length 430 mm

  • Distance between points 450 mm

HEAD

  • Cam Lock 8 chuck

  • Spindle bore  Ø 61 mm

  • Speed range 45 - 4500rpm

ADVANCEMENTS

  • Automatic turret 8 positions

  • Max tool section 25 mm

  • X axis stroke 230 mm

  • Z axis stroke 530 mm

  • Rapid speed X 30000 mm/min

  • Rapid speed Z 30000 mm/min

ENGINE

  • Motor power 7.5 kW

  • Total installed power 15 kw

Overall dimensions  with chip conveyor

  • Machinery overall dimensions L 3300 mm xl 1821 mm x 1930 mm

  • Machine weight 3500 kg

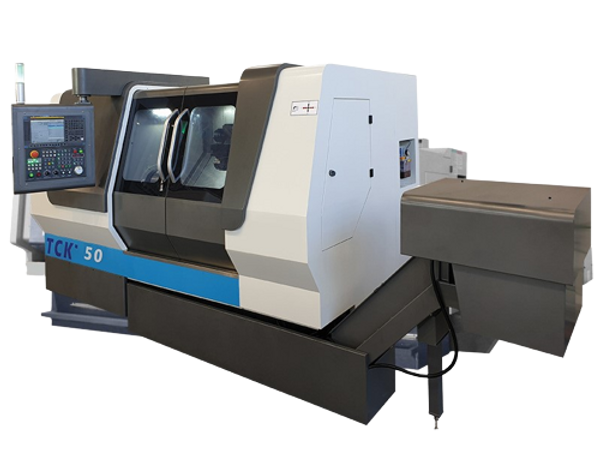

Cnc lathe mod TCK50
TCK50 display screen.jpg

Fanuc 0i TF CNC control

TCK50 tool holder turret.jpg

Automatic turret 8 positions

TCK50 chip conveyor.jpg

Chip conveyor

tck 50.png
TORNIO CNC TCK 50

TCK 50 CNC Lathe Machine Data Sheet

CE MARK

MACHINERY COMPLIANT WITH REGULATIONS

12
MONTHS

NEW PURCHASE WARRANTY
